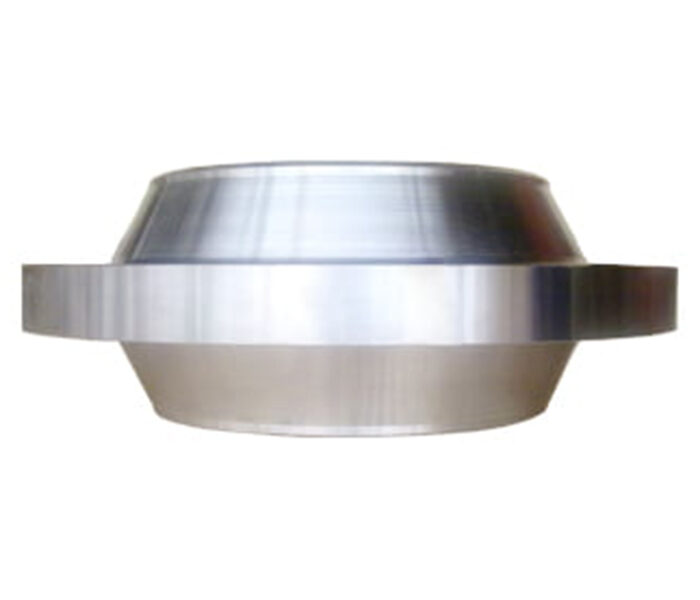

Anchor Flange
Weld neck anchor flange providing pipeline stability, support, and resistance to thermal expansion forces.
Description
An anchor flange is installed at pipeline endpoints or directional changes. When welded to pipe and bolted to mounting surfaces, it prevents pipeline movement or shifting and absorbs thermal expansion and contraction.
Features two hubs for welding to adjacent pipes but lacks bolt bores, differentiating it from standard weld neck flanges.
Specifications
| Brand | Multi-Brand |
|---|---|
| Origin | China / India / Europe |
| Product Code | TF-FL-014 |
| Materials | ASTM A182 (F304–F904L), ASTM A105, A350, A516 Gr.70, Duplex, Nickel Alloy |
| Size Range | 1/2" (DN15)–100" (DN2500) |
Standards & Codes
ANSI/ASME B16.5
ANSI/ASME B16.47
MSS SP44
DIN
BS 4504
BS 1560
Applications
- Oil & gas pipelines and refineries
- Petrochemical and chemical processing
- Power generation and industrial boilers
- Marine and offshore applications
- Water treatment and desalination
Documentation
Mill Test Certificates (EN 10204 3.1) available on request. Third-party inspection (TPI) can be arranged.
