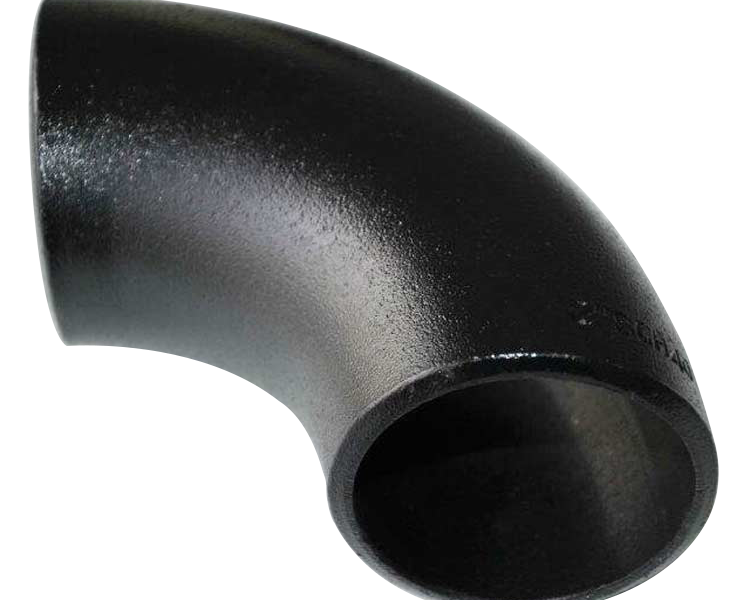

Butt Welded Elbow
Piping fitting elbow joined by butt-welding for leak and corrosion-resistant connections in 90°, 45°, and 22.5° angles.
Description
A butt-welded elbow is joined to a pipeline using a butt-welding process, creating leak and corrosion-resistant connections. Available in 90°, 45°, and 22.5° configurations in long radius and short radius variants.
Preferred over threaded or socket-welded alternatives in high-pressure, high-temperature, and corrosive fluid applications.
Specifications
| Brand | Multi-Brand |
|---|---|
| Origin | China / India / Europe |
| Product Code | TF-BW-001 |
| Materials | Carbon Steel, Alloy Steel, Stainless Steel, Nickel Base Alloy |
| Size Range | DN6–DN3200 |
Standards & Codes
ASME B16.9
ASTM A234
ASTM A403
Applications
- Oil & gas pipelines and refineries
- Petrochemical and chemical processing
- Power generation and industrial boilers
- Marine and offshore applications
- Water treatment and desalination
Documentation
Mill Test Certificates (EN 10204 3.1) available on request. Third-party inspection (TPI) can be arranged.
