Lap Joint Flange
Flat circular plate with raised collar, used with stub end fitting for easy assembly and disassembly.
Description

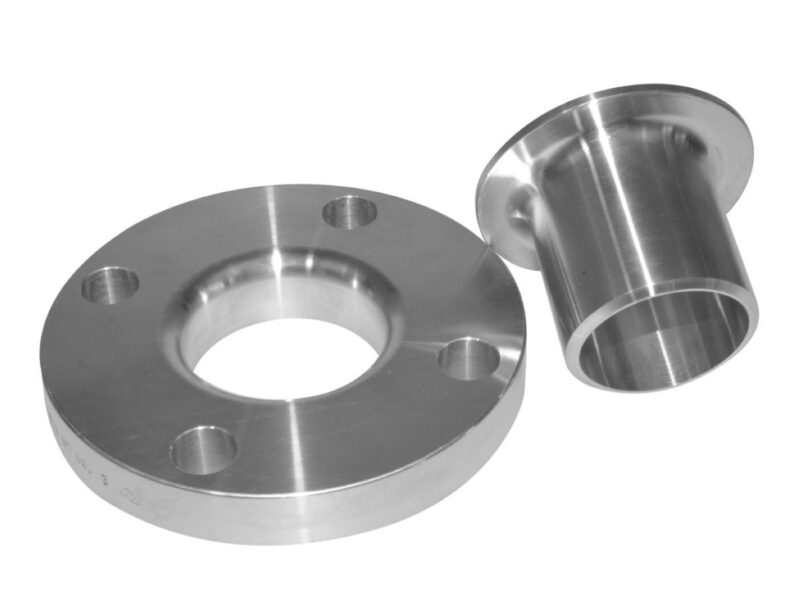

A lap joint flange features a flat circular plate with a raised collar, designed for use with a stub end fitting. It slides over the pipe and pairs with a stub end, allowing free rotation for bolt-hole alignment.
Used in low-pressure applications where frequent maintenance or inspection is required. Common in petrochemical, marine, and power systems.
Specifications
| Brand | Multi-Brand |
|---|---|
| Origin | China / India / Europe |
| Product Code | TF-FL-006 |
| Materials | Carbon Steel (A105), Stainless Steel (F304, F304L, F316, F316L), Copper |
| Size Range | DN15–DN2000 (1/2"–24") |
Standards & Codes
ANSI B16.5
JIS
DIN
BS4504
EN1092-1
Applications
- Oil & gas pipelines and refineries
- Petrochemical and chemical processing
- Power generation and industrial boilers
- Marine and offshore applications
- Water treatment and desalination
Documentation
Mill Test Certificates (EN 10204 3.1) available on request. Third-party inspection (TPI) can be arranged.
