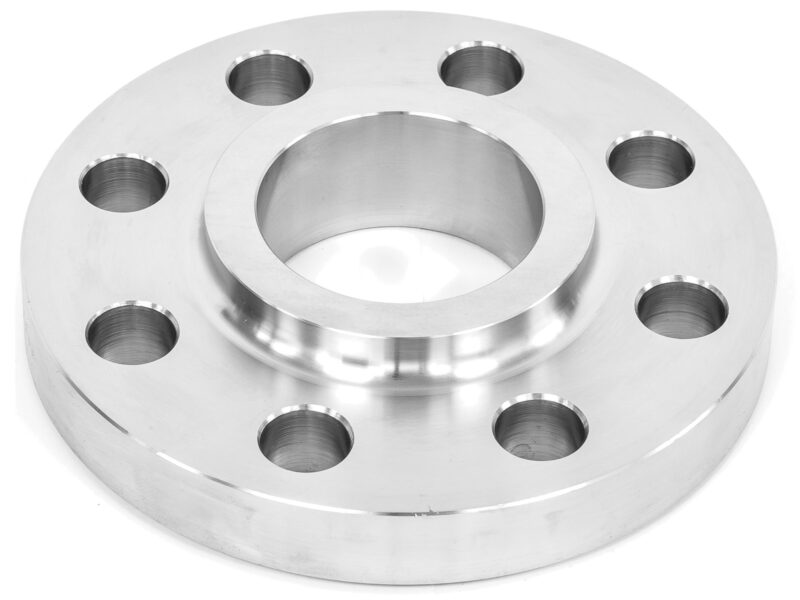

Slip-on Flange
Circular disk-shaped flange that slips over the pipe end and is welded in place, ideal for low-pressure applications.
Description
A slip-on flange slips over pipe ends and is welded in place with internal and external fillet welds. Suited for low-pressure, non-critical applications like water supply, sewage, and irrigation systems.
Among the most widely used flange types due to ease of installation and lower cost compared to weld neck flanges.
Specifications
| Brand | Multi-Brand |
|---|---|
| Origin | China / India / Europe |
| Product Code | TF-FL-004 |
| Materials | Carbon Steel (A105), Stainless Steel (F304, F304L, F316, F316L), Copper |
| Size Range | DN15–DN2000 (1/2"–24") |
Standards & Codes
ANSI B16.5
JIS
DIN
BS4504
EN1092-1
Applications
- Oil & gas pipelines and refineries
- Petrochemical and chemical processing
- Power generation and industrial boilers
- Marine and offshore applications
- Water treatment and desalination
Documentation
Mill Test Certificates (EN 10204 3.1) available on request. Third-party inspection (TPI) can be arranged.
