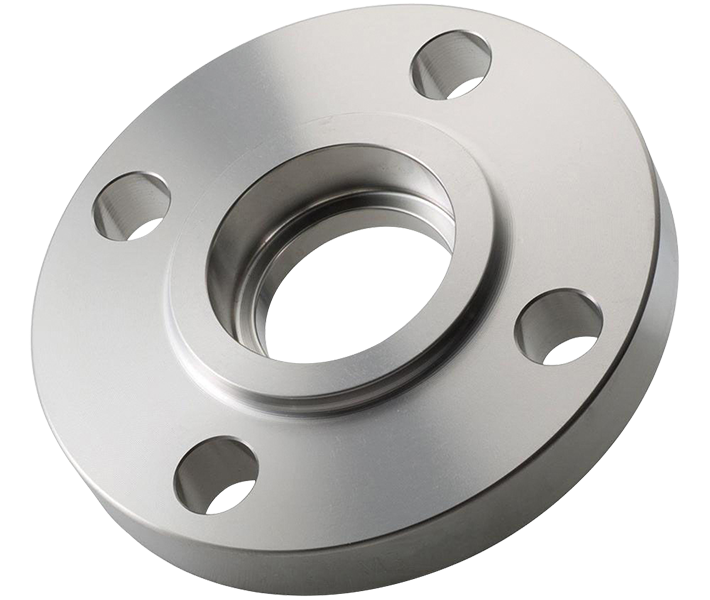

Socket Weld Flange
Flange with recessed socket for pipe insertion and welding, suited for high-pressure, smaller-diameter applications.
Description
A socket weld flange features a recessed socket into which a pipe is inserted and welded. Commonly used in high-pressure applications requiring strong, reliable connections for smaller diameter pipes.
Provides a smooth bore for better fluid flow. Used in petrochemical, chemical processing, power generation, and industrial piping systems.
Specifications
| Brand | Multi-Brand |
|---|---|
| Origin | China / India / Europe |
| Product Code | TF-FL-003 |
| Materials | Carbon Steel (A105), Stainless Steel (F304, F304L, F316, F316L), Copper |
| Size Range | DN15–DN2000 (1/2"–24") |
Standards & Codes
ASME B16.5
JIS
DIN
BS4504
EN1092-1
Applications
- Oil & gas pipelines and refineries
- Petrochemical and chemical processing
- Power generation and industrial boilers
- Marine and offshore applications
- Water treatment and desalination
Documentation
Mill Test Certificates (EN 10204 3.1) available on request. Third-party inspection (TPI) can be arranged.
